SPROCKET

MODULAR OVERLAND CAMPING TRAILER

BY OFF GRID TRAILERS™

GEAR UP YOUR BASECAMP AT YOUR OWN PACE.

sprock·et: A small lightweight component that powers a larger powerful machine.

The Sprocket's modular design is the core component of your adventure base camp that allows you to add options and accessories when you are ready.

Base Price: $23,500.00 US \ $29,500.00 CAD

Construction: All-metal (aluminum body on steel frame)

Kitchen: Dual burner cooktop (optional), sink basin (optional) & 30L fridge (optional)

Interior: Queen Size Bed (mattress optional) w/ over foot pass-through storage

Exterior Storage: Rear pass-through storage & optional roof rack

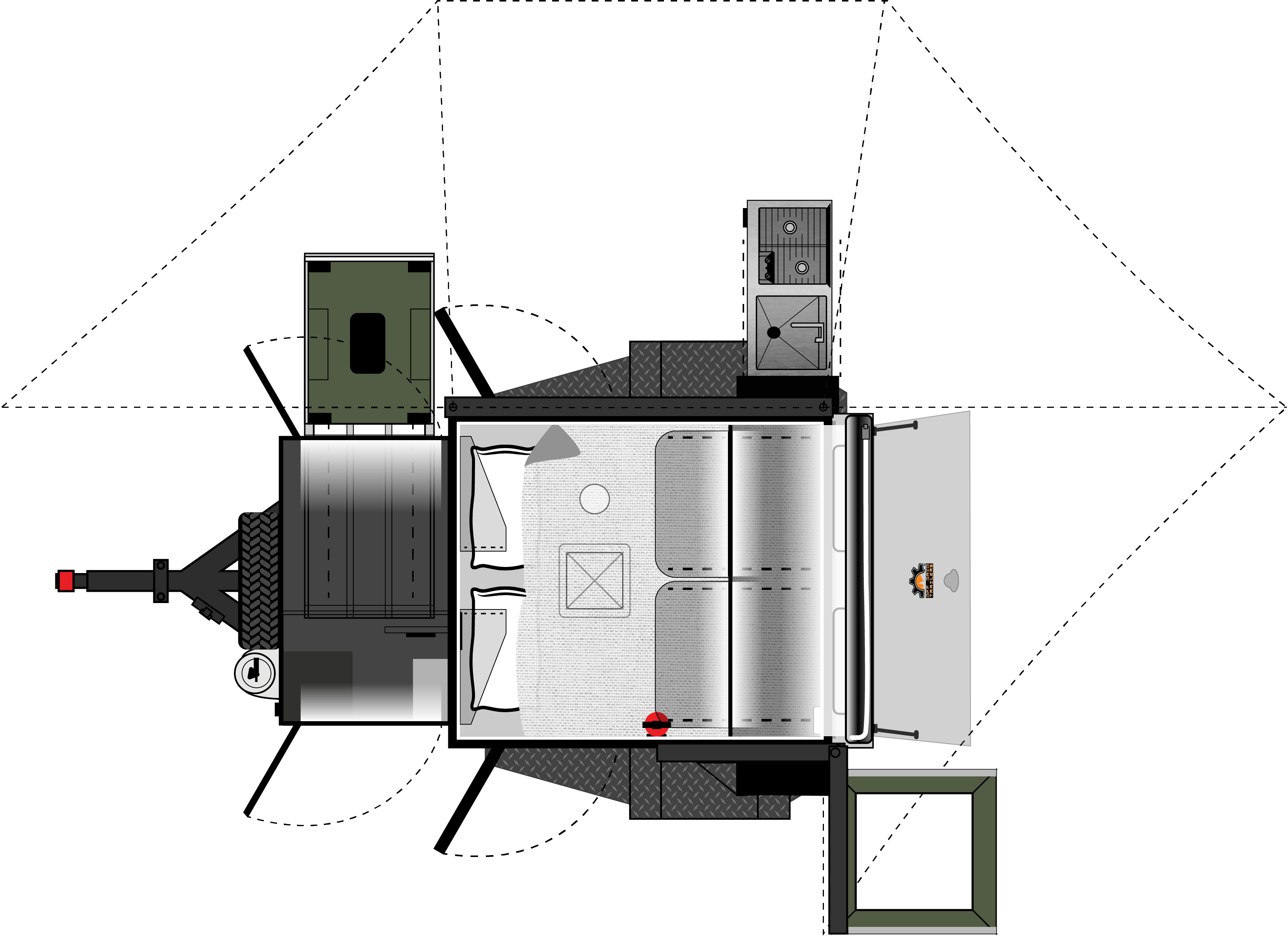

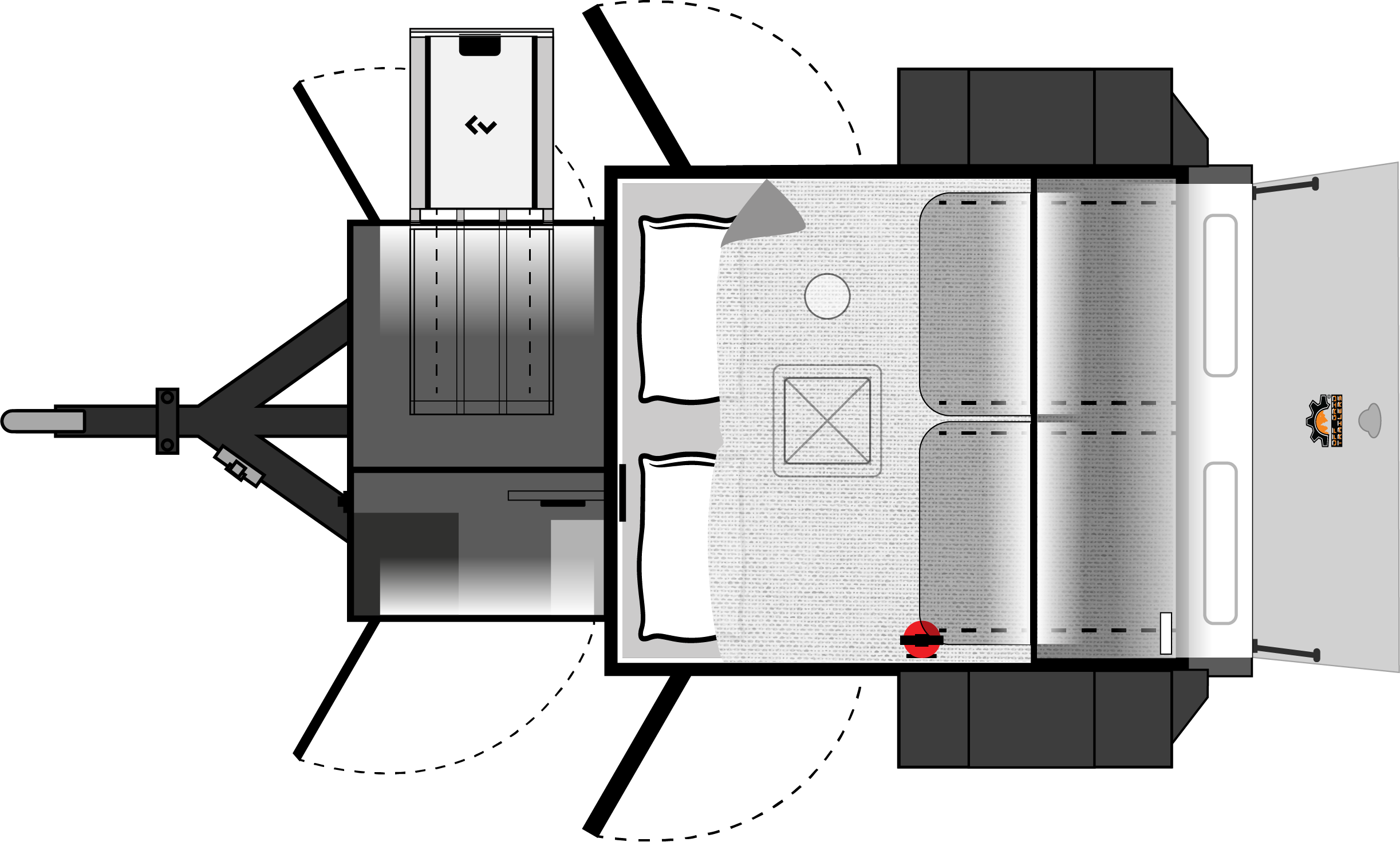

Sprocket & Sprocket X Floorplans

Start your build by choosing between the Sprocket & Sprocket X platforms.

Opt for the Sprocket X if you need Xtra Storage in your rig. By choosing the Sprocket X you are selecting the full height front box with luggage carrier rather than the standard half height front box. The front box is the only option that you cannot upgrade post purchase, so choose wisely.

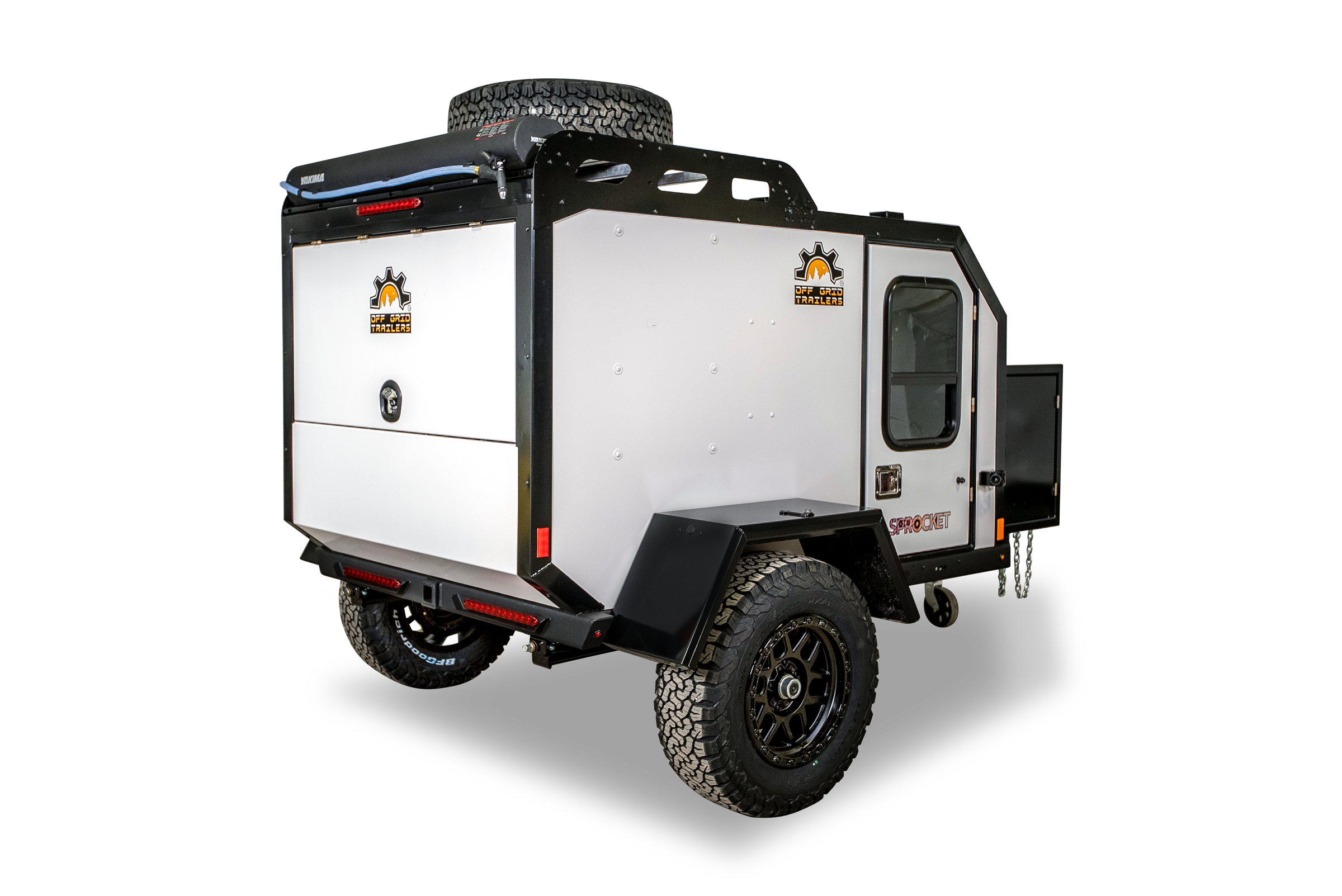

OFF GRID TRAILERS™ SPROCKET CAMPING TRAILER

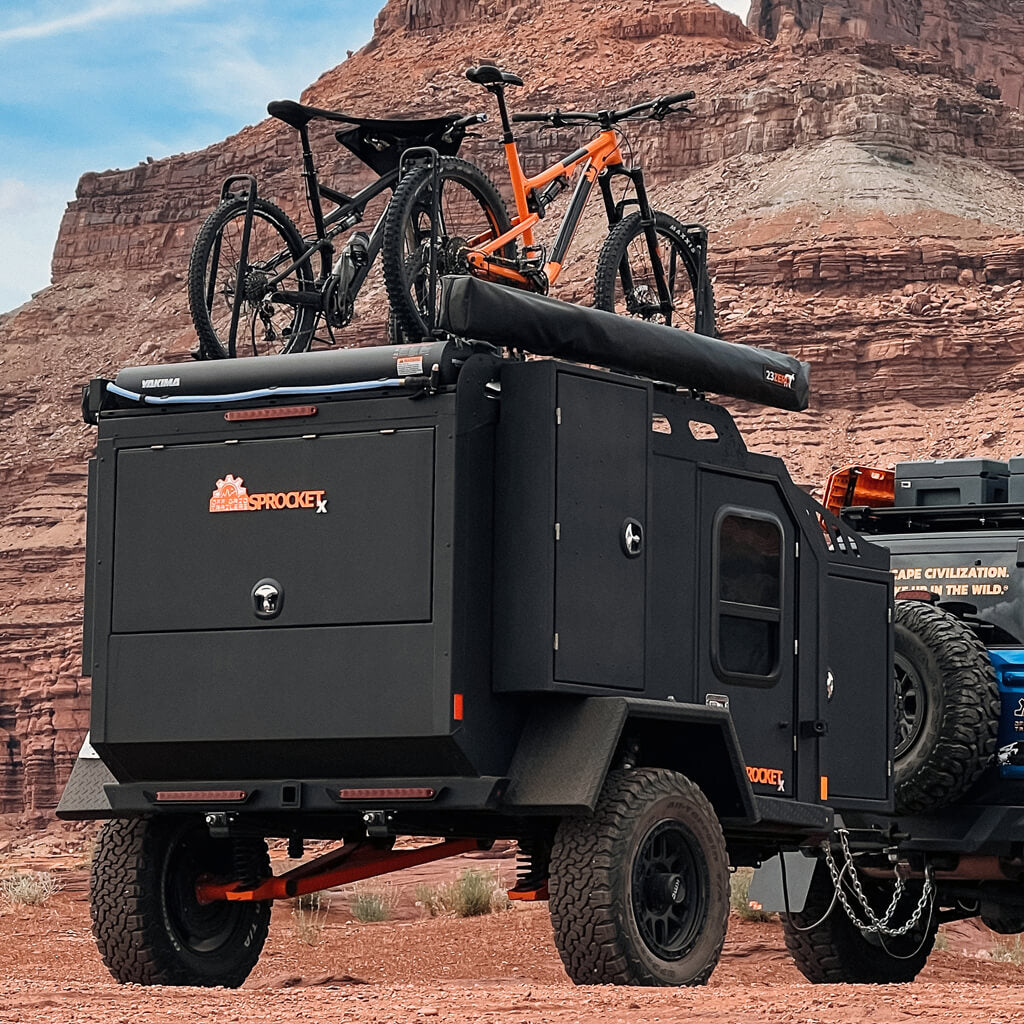

OFF GRID TRAILERS™ SPROCKET X CAMPING TRAILER

SPECIFICATIONS

Dry Weight: 1600 LBS

Tongue Weight: 300 LBS
*Tongue weight will fluctuate based on accessory & loading configuration.

MAX GVW: 3500 LBS

Departure Angle: 50 Degrees

Ground Clearance: 21″ | 25″ w/ Evolution Series Suspension

Overall Length: 156″

Width: 89″

Overall Height: 74” – 83″ w/Roof Rack & Evolution Series Suspension

Track Width: 76 Inches

Interior Headroom: 46.5″

Interior Length: 80″

Interior Width: 56.5″

Mattress Size: Queen

Pass-Through Rear Exterior Cabinets: 15″x27″‘x56″

STANDARD FEATURES

  • CNC Laser Cut 4-Inch C-Channel Steel Frame
  • 2″ Front & Rear Receiver/Standard 2″ Ball Hitch

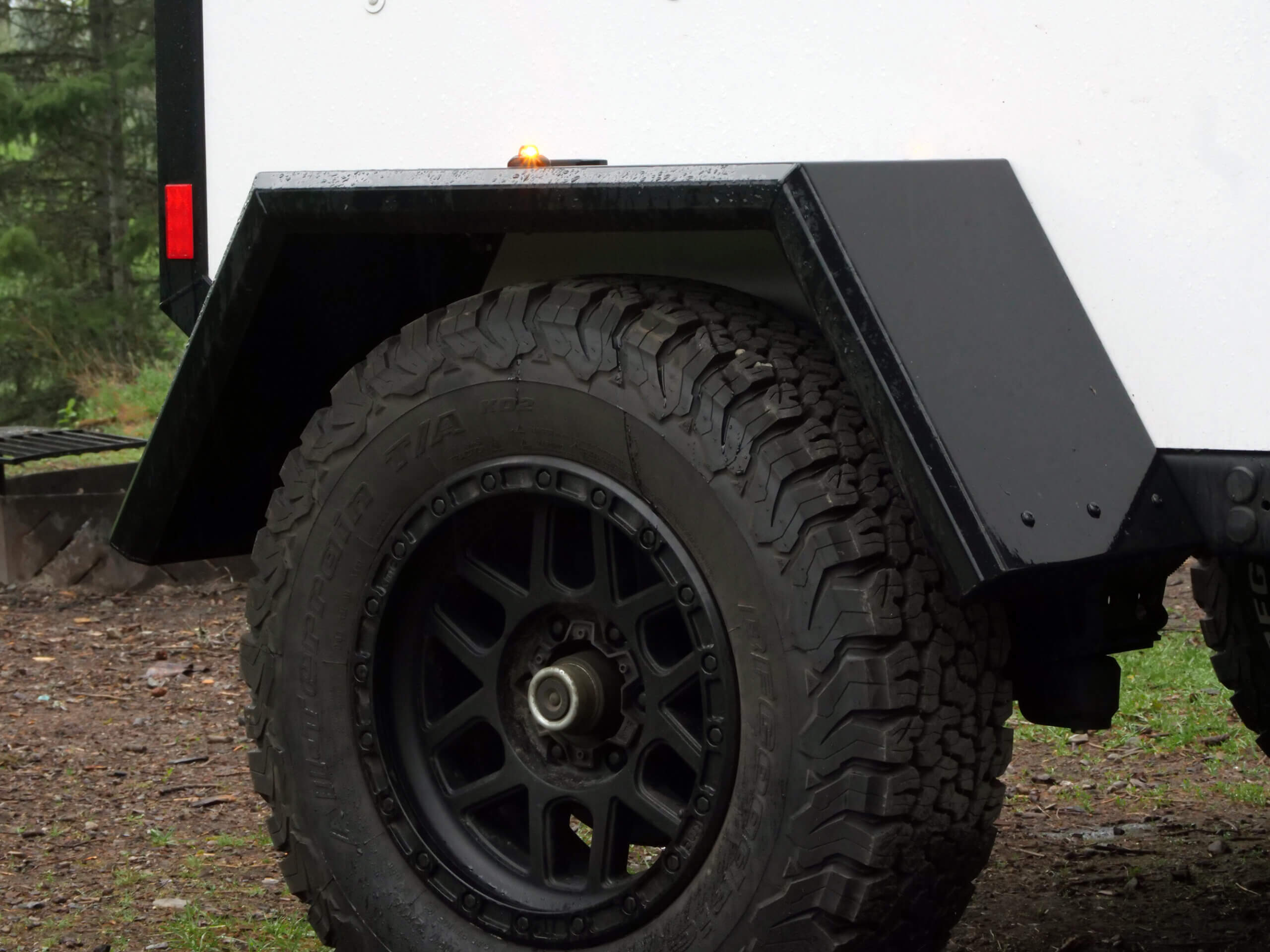

  • 0.100″ Aluminum Removable Two-Piece Fenders
  • Integrated Mounting Points For All Frame Mounted Accessories & Stabilizer Jack Option
  • Fulton 1500 Single Wheel Front Jack
  • Half Height Front Box (Sprocket) / Full Height Front Box (Sprocket X)
  • Timbren 3500 HD Axle-Less Suspension
  • 12 Inch Electric Brakes & Battery Back Up Breakaway System
  • Aluminum 17×8.5″ Black Wheels
  • 265/10/R17 AT Tires
  • 6×5.5″ Bolt Pattern
  • 0.050″ Aluminum Subfloor
  • CNC Cut, R10 Rigid Foam Insulation
  • 3/16 Lightweight Polypropylene Board
  • 0.90″ Aluminum Outside Skin
  • 0.064″ Aluminum Painted White Inside Skin
  • 1.5″x1/8″ Aluminum tube wall frame
  • CNC Cut R10 Rigid Foam Insulation
  • One Piece Wrap Around Roof

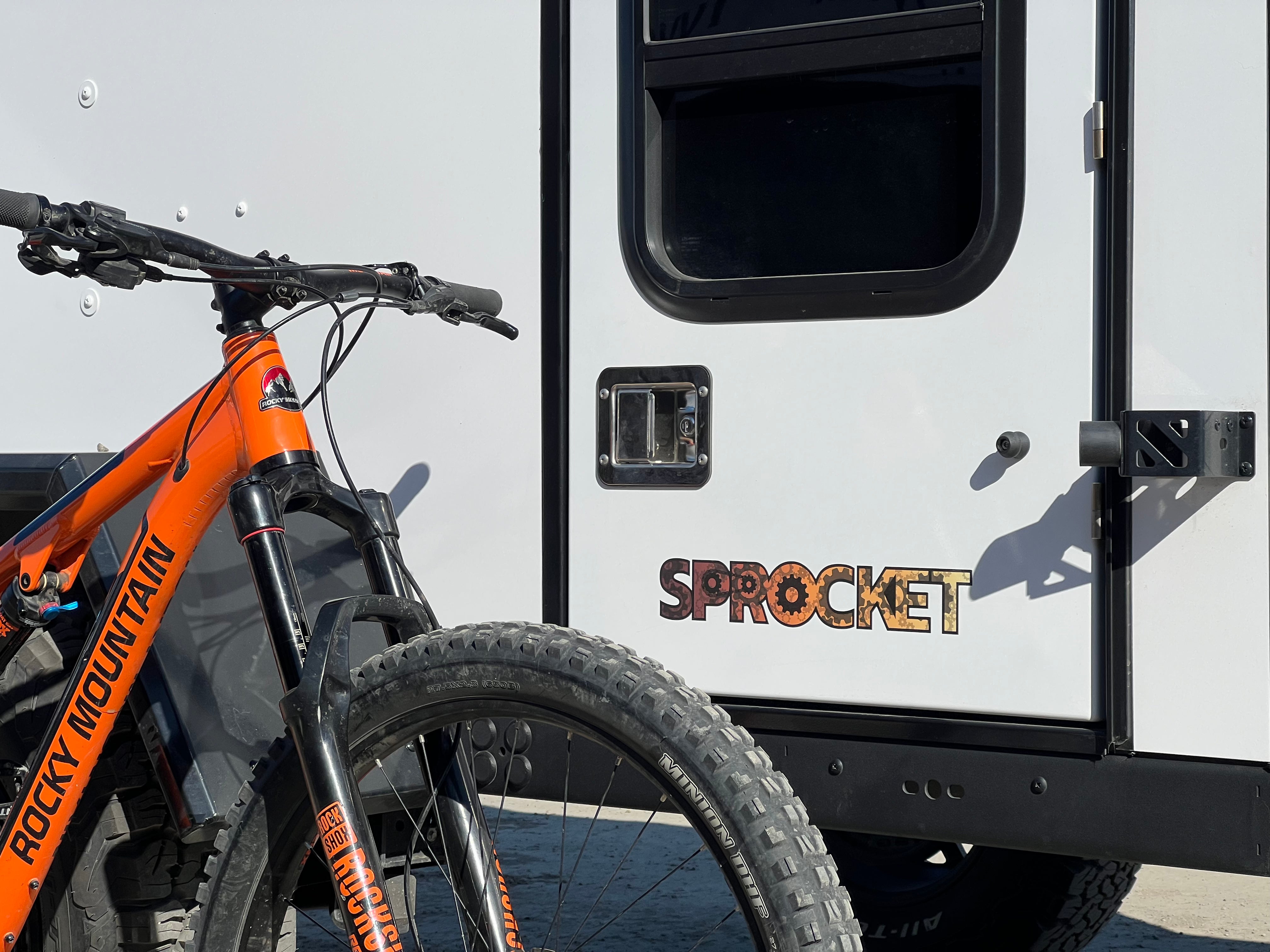

  • Custom OGT Lockable Dust/Watertight entry door with sweep-out threshold & tinted/screened window
  • Over-foot rear pass-through storage w/ cabinet doors
  • 15 Amp Shore Power Plug
  • 7 Pin Junction Box, Fuse Panel, Solar Port & Shore Power Port
  • Accessible and Removable Wire Track
  • 1 Dual USB Outlet, Digital Volt Meter interior LED lights
  • 12V Deep Cycle AGM Battery w/ 1000W Pure Sine Inverter/Charger
  • 30ft Shore Power Cord
  • 4 Speed MaxxFan Plus
  • Interior-mounted Smoke Detector, CO2 Detector, & Propane Detector
  • 2lb Quick Strike Fire Extinguisher

OPTIONS

  • Diamond Plate Fenders
  • Running Boards
  • Ark XO Front Jack
  • Rear Stabilizing Jacks
  • Anti-Skid Black Powder Coating
  • Half Length Roof Rack
  • Full Length Roof Rack
  • Drivers Side Shower Box
  • OGT Evolution Series Trailing Arm Suspension
  • 360 Degree Articulating Hitch
  • Front Mounted Spare Tire (Only Available on Sprocket X)
  • Roof Mounted Spare Tire (Must Select Roof Rack)
  • 4 or 6″ High Density Foam Convertible Matress
  • 4 interior mounted Molle Panels in rear compartment
  • Full Width or Half Width Drop Down Shelving
  • Device Holder
  • Privacy Shades
  • Drop Down Table w/ Sink only
  • Drop Down Dual Burner Stove & Sink
  • 25L Dometic Fridge (Sprocket Only)
  • 69L Truma Dual Zone Fridge/Freezer (Sprocket X Only)
  • 7 Gal. Road Shower (Must Select Roof Rack )
  • Dual Mounted 1.75 Gallon RotoPax Water Containers
  • Bluetooth Stereo w/ Dual Marine Speakers
  • Spice Rack & Wind Deflector
  • Paper Towel Holder
  • 10 LBS. Propane Tank & Bracket (Not Plumbed)
  • Dual 12V Lithium Battery w/ 2000W Pure Sine Inverter & Charge Controller
  • 180 W Solar Brief Case
  • Diesel Heater/Portable A/C ports

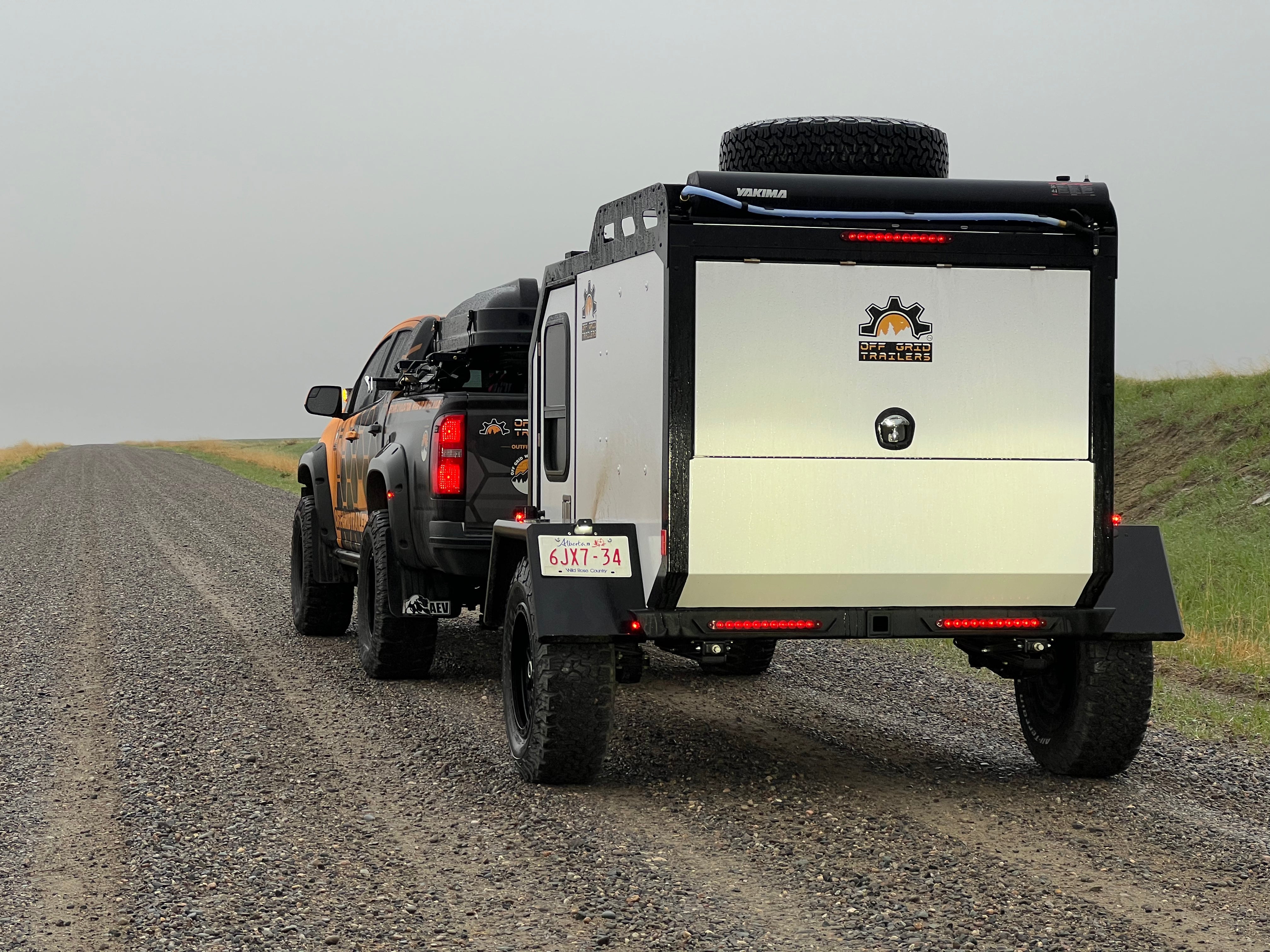

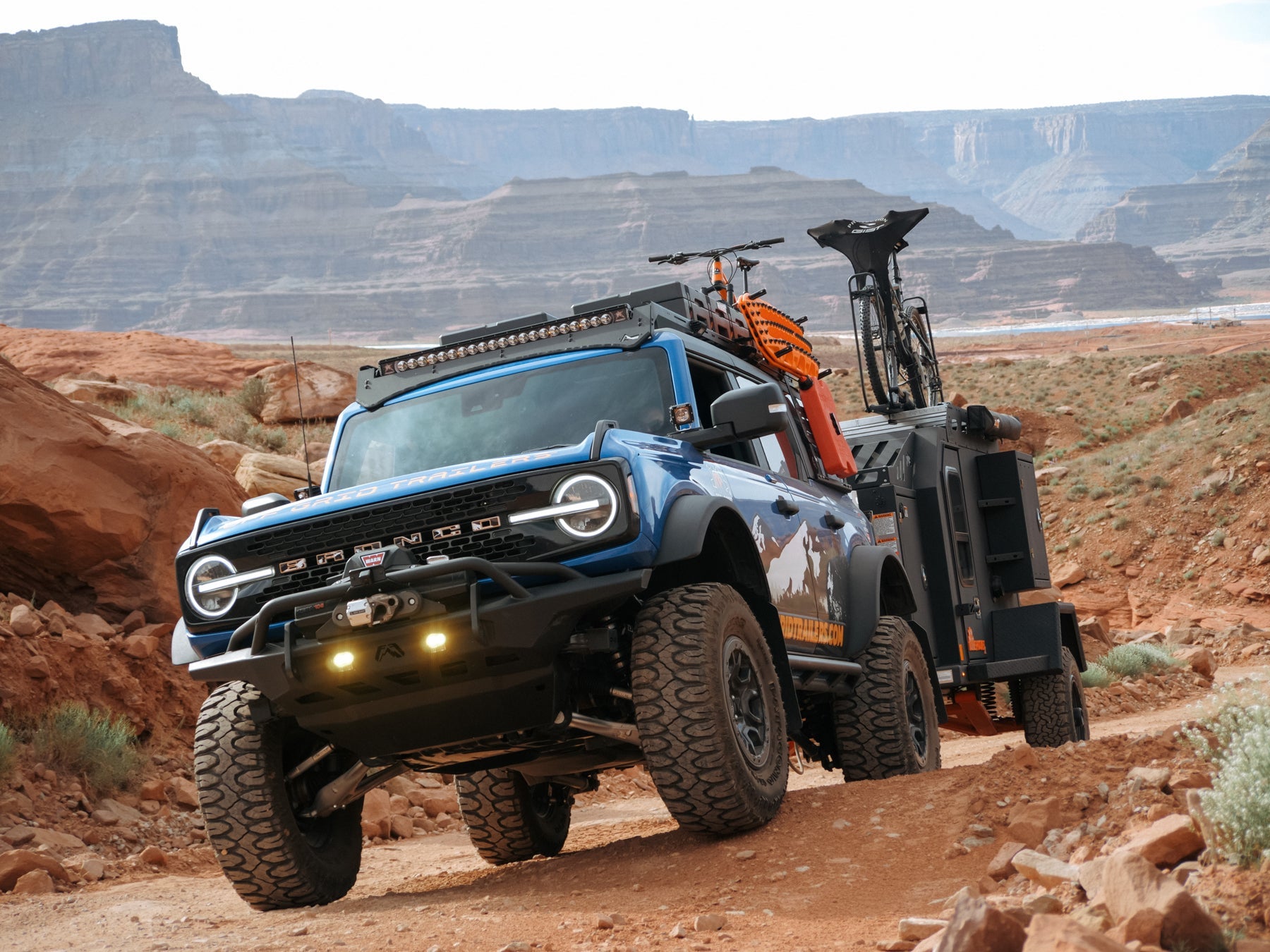

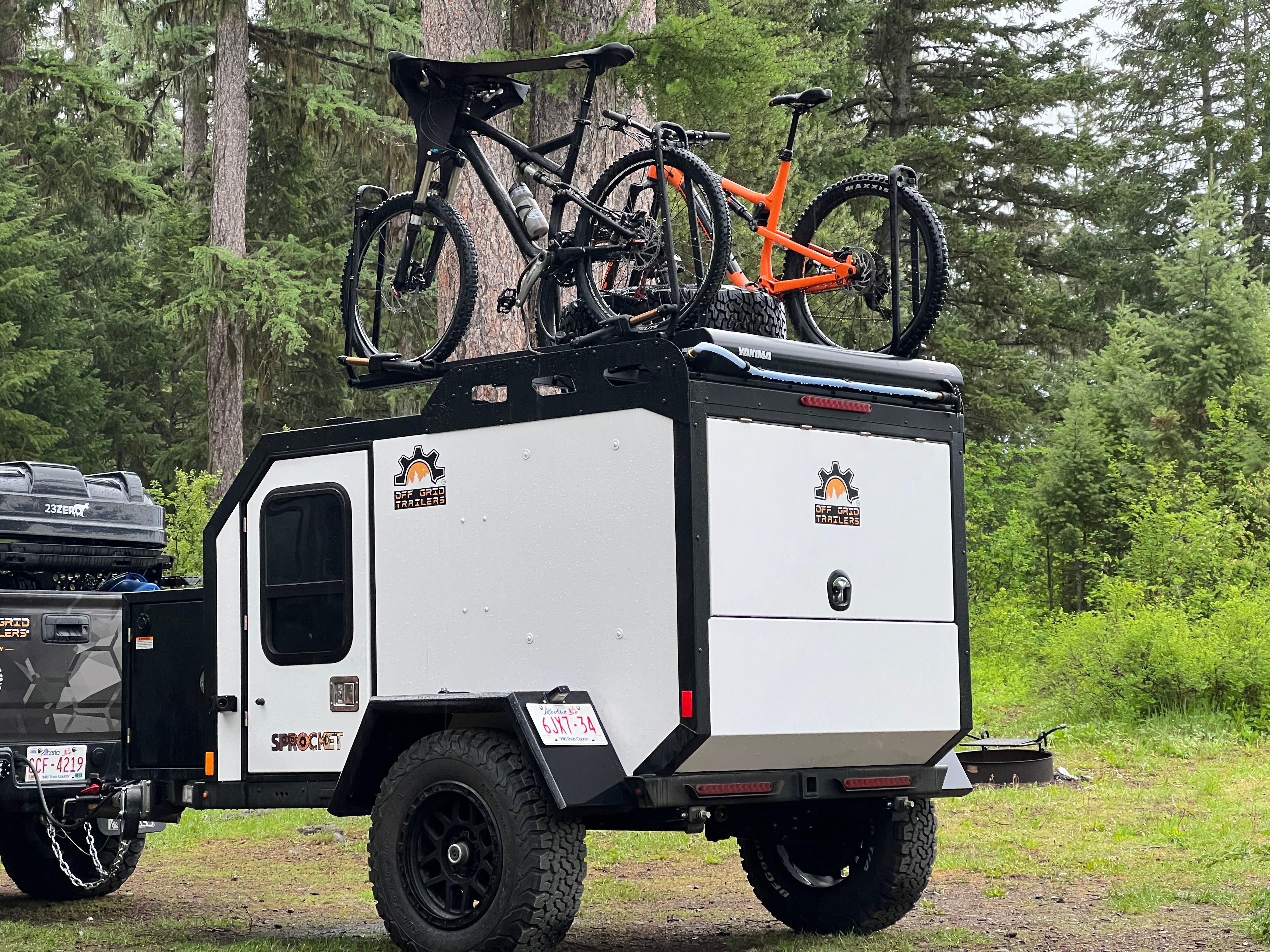

SPROCKET & SPROCKET X IN THE WILD.

FULL SPROCKET Exterior GALLERY.

FULL SPROCKET X Exterior GALLERY.

FULL SPROCKET & Sprocket X INterior GALLERY.

THE SPROCKET/SPROCKET X IN THE MEDIA

Immerse yourself in the freedom of customization with the Sprocket—a trailer designed to adapt to your unique needs. Built with meticulous craftsmanship, the Sprocket features an all-metal construction on a sturdy 4-inch c-channel frame. Its body is constructed from aluminum sheeting with an R10 insulated foam core. This modular trailer allows you to start with a basic configuration and bolt on options and accessories either at the factory or post-purchase, creating a personalized camping experience like no other.

The Sprocket stretches out to 166″ in length from bumper to hitch and spans 82″ in width from fender to fender. With a dry weight of 1600 lbs, it offers a balanced combination of agility and durability. The generous 21 inches of ground clearance and an impressive 50-degree departure angle equip you with the confidence to tackle any terrain that beckons you.

Elevate your off-road adventures with the available upgraded OGT Evolution series suspension. Offering an impressive 25 inches of ground clearance and 8 inches of wheel travel, this suspension system ensures a smooth and controlled ride on even the most challenging terrains. The all-metal construction guarantees exceptional durability, promising a reliable companion throughout your journeys.

The Sprocket comes standard with the reliable Timbren 3500 HD axle-less independent suspension. However, for those seeking enhanced performance, an upgraded suspension option is available. Featuring a trailing A-arm with a 2.25″ Dirt Logic shock and coil spring, this suspension system enhances handling and comfort, making your off-road escapades even more enjoyable.

Designed to conquer rugged terrain, the Sprocket comes standard with robust 265/70/17 all-terrain tires. These specialized tires are purpose-built for off-road use, providing excellent traction and durability, allowing you to confidently navigate various landscapes with ease.

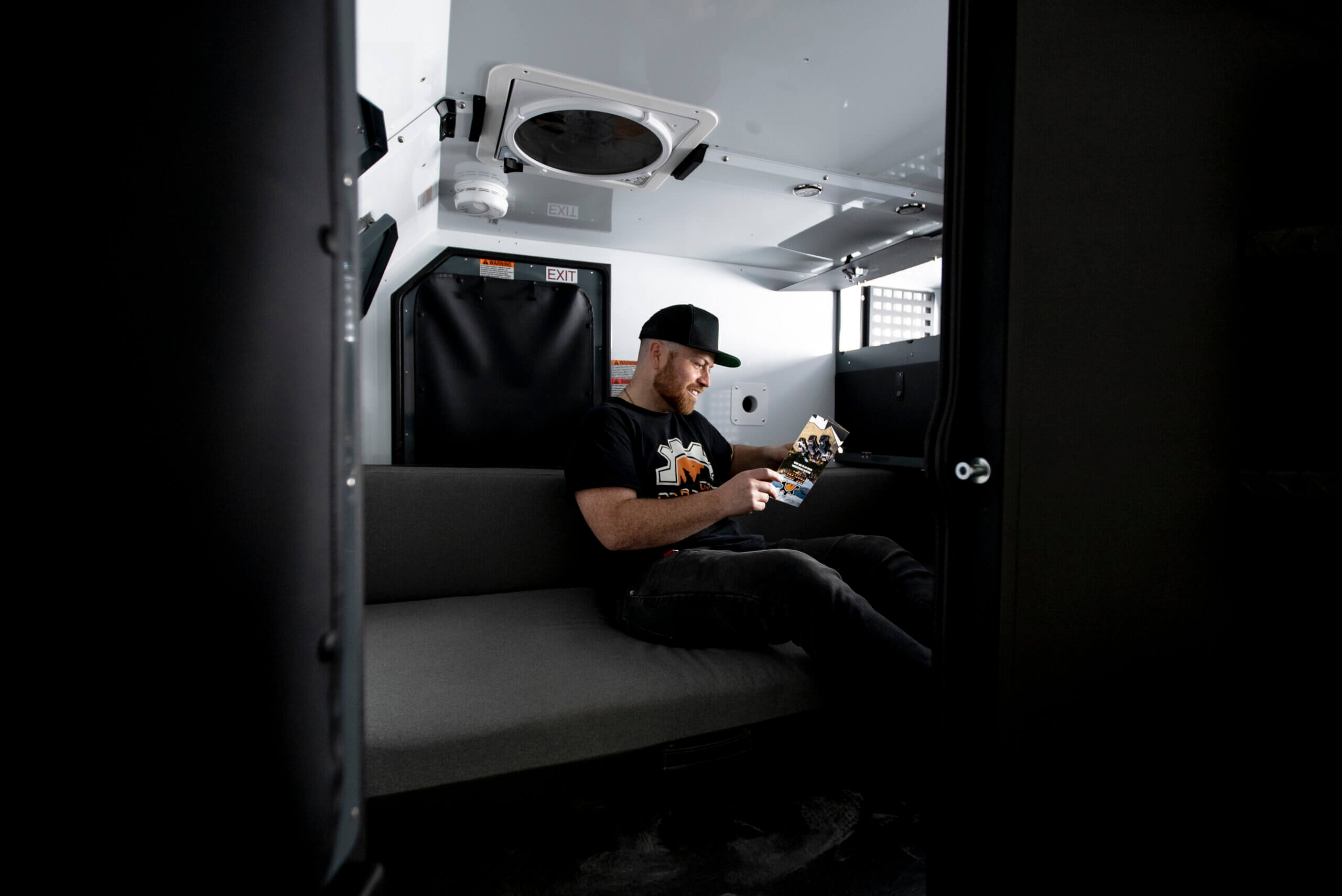

Step into the well-designed interior of the Sprocket, where comfort awaits. A full queen-sized bed provides a cozy retreat for a restful night’s sleep (mattress optional). Four over-foot pass-through cabinets, constructed from durable aluminum, offer ample storage space for your essentials. A roof-mounted MaxxFan helps regulate the temperature inside the cabin, ensuring optimal comfort. The cabin is R10 insulated, shielding you from the elements and maintaining a pleasant environment throughout your adventures.

The Sprocket understands the importance of storage versatility. The rear storage cabinet features a convenient pass-through to the interior, allowing you to access your belongings without hassle. For added storage capacity, optional integrated half-length or full-length roof racks with cross bars are available. These racks are impressively rated to carry up to 1000 lbs, accommodating larger items and gear for your outdoor pursuits.

Embrace the convenience of the optional exterior-mounted drop-down side galley kitchen. Equipped with a high-output dual burner stove and a bespoke stainless steel sink basin with a folding faucet, this innovative kitchen setup enables you to prepare meals in the great outdoors with ease. Indulge in the joys of outdoor cooking and dining, taking your camping experience to new heights.

The Sprocket incorporates features essential for your off-road excursions. With its high ground clearance, independent suspension, Max Coupler articulating hitch, and robust all-metal construction, this trailer ensures durability, reliability, and excellent performance. The exceptional 50-degree departure angle allows you to conquer steep inclines and declines, expanding your exploration horizons and granting you access to breathtaking vistas.

With its modular design, the Sprocket is the epitome of versatility. It empowers you to create a trailer that perfectly suits your needs, allowing you to go anywhere your adventurous spirit desires. Embrace the freedom of customization and embark on unforgettable journeys tailored to your preferences. The Sprocket invites you to design your dream camping companion and unlock endless possibilities for exploration.

With the Sprocket, adventure is not only on the horizon—it’s within your grasp. Craft a personalized camping experience and venture into the unknown with a trailer that adapts to your ever-changing needs. Discover the true meaning of freedom and embark on extraordinary journeys with the Sprocket by your side.

The all-metal off-road capable camping trailer with an industry-leading basecamp set-up time is perfect for your next overland adventure.
